Wallys/QSDK/IPQ4019 and IPQ4029 chipsets support 20 km remote transmission

Cindy-wallys

The IPQ4019 and IPQ4029 chipsets from Qualcomm are designed for high-performance Wi-Fi networks, providing advanced features such as MU-MIMO, beamforming, and enhanced spectral efficiency. These chipsets are suitable for a wide range of applications, including enterprise, industrial, and residential wireless networks.

When combined with the Wallys WiFi5 Industrial Wireless AP DR-AP40X9-A, these chipsets can provide exceptional long-range connectivity. The DR-AP40X9-A is designed for outdoor use and is equipped with high-power radios and antennas, allowing it to cover a large area with a strong Wi-Fi signal. With the IPQ4019 or IPQ4029 chipset, the DR-AP40X9-A can deliver reliable and high-speed wireless connectivity over long distances, making it an ideal solution for industrial applications, remote locations, and outdoor environments.

Description

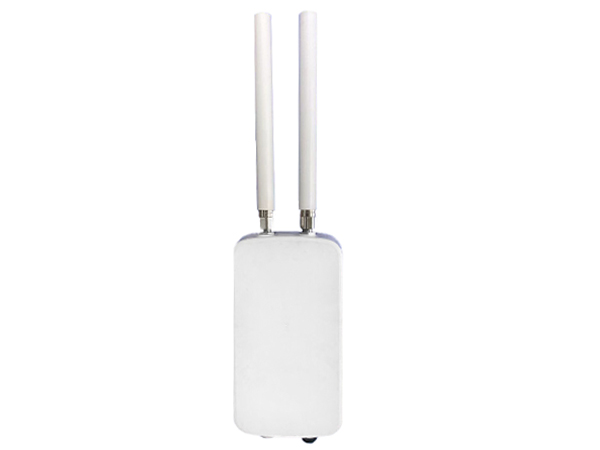

DR-AP4029(Outdoor) is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR40X9(IPQ4019/IPQ4029) Board;1 x Onmi Antenna; 1 x POE Adapter(24V^1A~48V^0.6A);1 x Enclosure.

Panel Antenna

■  2 x 5G Antenna

■  5G: 17dbi

DRA25 Antenna

ElectricalProperties :

Frequency Range：2.4~2.5&5.15~5.85GHz

Impedance：50Ω

VSWR：2.0 Max （≤2.0）

Gain(peak)：6±0.5dBi

Polarization：Linear; Vertical

Physical Properties :

Cable：RG-141 Cable

Connector：N-type PLUG

Antenna CAP：ABS

OperatingTemp：-40℃~+65℃

Storage Temp：-40℃~+75℃

CableTemp：＜+250℃

Enclosure

■  Dimension: 275x140x48mm

■  UV Protected and Durable ABS Radome

■  IP67 Waterproof Level

■  Support Wallys  DR4029

DR-AP4029(Outdoor) is a high-power radio AP router that operates on both 2.4GHz and 5GHz frequencies. It comes with a DR40X9 board, an Omni antenna, a POE adapter, and an enclosure. The panel antenna of DR-AP4029 includes 2x 5G antennas with a gain of 17dbi. Additionally, the DRA25 antenna has a frequency range of 2.42.5&5.155.85GHz, a peak gain of 6±0.5dBi, and a linear vertical polarization. The antenna is connected using RG-141 cable and N-type plug connectors. It can operate within a temperature range of -40℃~+65℃ and can withstand cable temperatures of less than +250℃.

The enclosure of DR-AP4029 has dimensions of 275x140x48mm and is made of UV-protected and durable ABS Radome material. It has an IP67 waterproof level and supports Wallys DR4029.
